Discussion on "Testing the CAN peripheral on the STM32F407 Discovery Kit in Loopback Mode"

Ruturaj A. Nanoti · 2021-10-18T10:32:35.880Z

Introduction Hello!! 😄 Today we will explore the CAN peripheral available on the STM32F407 Discovery Kit. We will test it using the Loopback Operating mode, which is one of the Test modes. The purpose of this test is to ensure that the CAN periphera...

can your share the whole code ?

Hi, the link to the complete code is present at the end of the working principle section, and here it is just in case: github.com/Ruturajn/CAN-Peripheral-Loopback-Test-…

Ruturaj A. Nanoti Do you use uart protocol in for Can communicate. ?

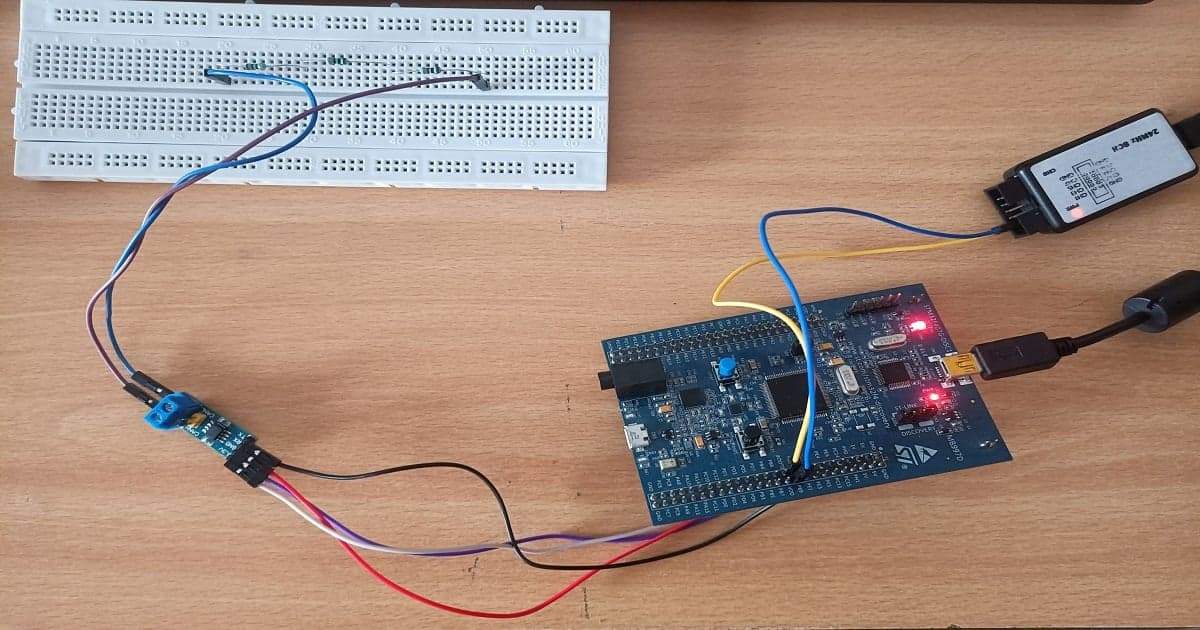

Rohit Kumar Can you share the connection of board and logic analyzer.

Hi, Can you explain the Data field values you are getting in the screenshot.

Hi, the Data field shows the values that are sent over the CAN bus (in hex format). I hope this helps. Let me know if you have any more questions.
